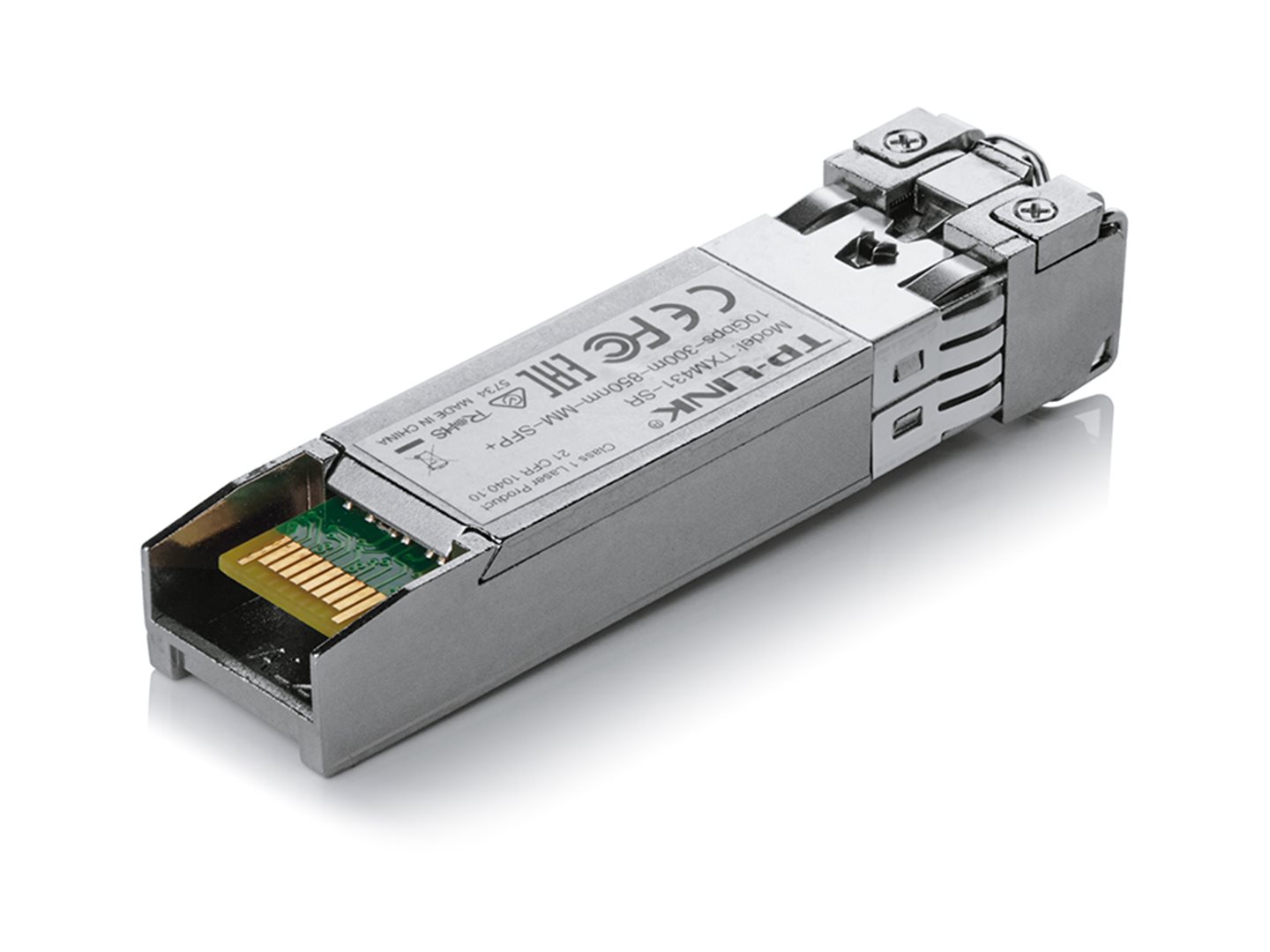

TP-Link TXM431-SR 10Gbase-SR SFP+ LC Trans. 300m

10GBase-SR SFP+ LC Transceiver - TXM431-SR

PŘEHLED/OVERVIEW

• Multi-mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Compatible with multiple TP-LINK switch models/SFP+ modules

SPECIFIKACE/SPECIFICATIONS
Standards and Protocols

• IEEE 802.3ae, CSMA/CD, TCP/IP

Wave Length

• 850nm

Power Supply

• 3.3V

Fiber Type

• 50/125um or 62.5/125um Multi-mode

Max. Cable Length

• 300m or 33m

Data Rate

• 10Gbps

Port Type

• LC/UPC

Transmission power

• -1.0dBm(Max)
• -7.3dBm(Min)

Reception power

• -1.0dBm(Max)
• -9.9dBm(Min)

Sensitivity

• -11.1dBm

Safety & Emission

• FCC, CE

Environment

• Operating Temperature: 0°C~70°C
• Storage Temperature: -40°C~80°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
