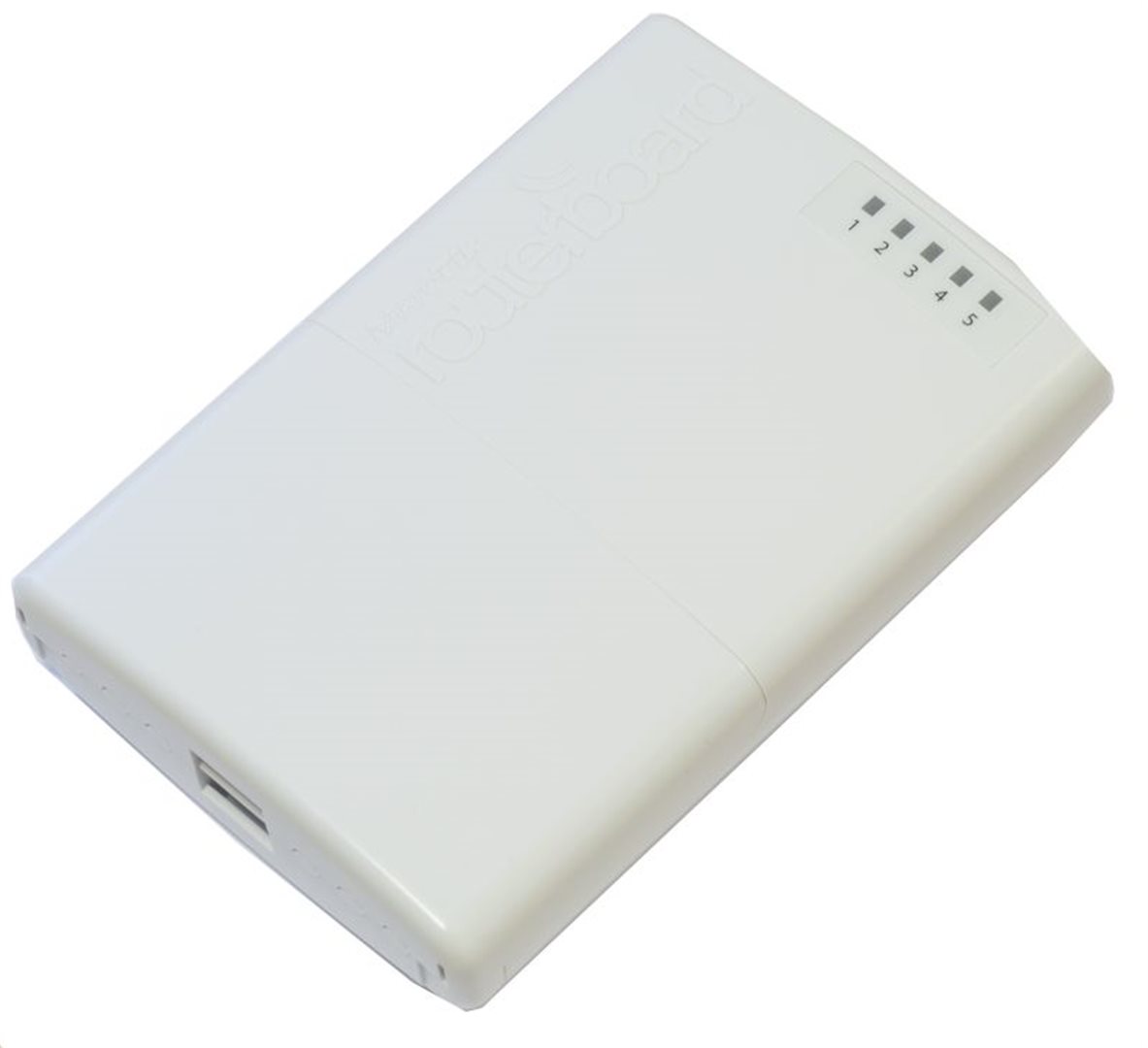

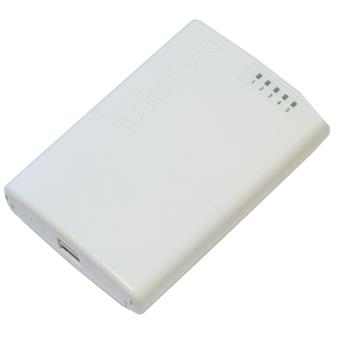

RB750P-PBr2 MikroTik Ethernet Router PowerBOX r2

PowerBox
PŘEHLED/OVERVIEW

• The PowerBOX is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.
• Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
• The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!

SPECIFIKACE/SPECIFICATIONS
Details

Product code

• RB750P-PBr2

CPU nominal frequency

• 650 MHz

CPU core count

• 1

Size of RAM

• 64 MB

10/100 Ethernet ports

• 5

10/100/1000 Ethernet ports

• None

MiniPCI slots

• 0

MiniPCI-e slots

• 0

Number of USB ports

• 0

Power Jack

• 1

PoE in

• Yes

Supported input voltage

• 6 V - 30 V

PoE out

• Yes

Voltage Monitor

• Yes

CPU temperature monitor

• No

PCB temperature monitor

• Yes

Dimensions

• 125x178x48mm

Operating System

• RouterOS

Operating temperature range

• -35C .. +70C

License level

• 4

Current Monitor

• Yes

CPU

• QCA9531-BL3A-R

Max Power consumption

• 2W

SFP ports

• 0

SFP+ ports

• 0

Serial port

• None
