Mikrotik R2SHPn miniPCI karta b/ g/ n (2,4GHz)

R2SHPn

OVERVIEW
The new 2.4GHz super high power wireless card for long range links and powerful access points. This is the professional choice for reaching the last mile - 1600mW transmit power will give you the ability to reach even further than before. Up to 125Mbit throughput is possible with this device! Works in the 2.4GHz frequency (2192-2732MHz depending on country regulations)

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

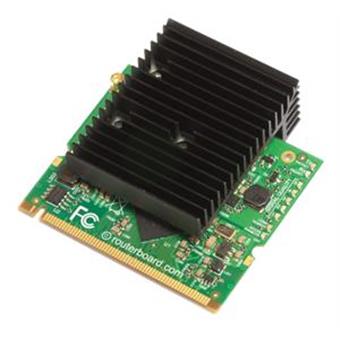

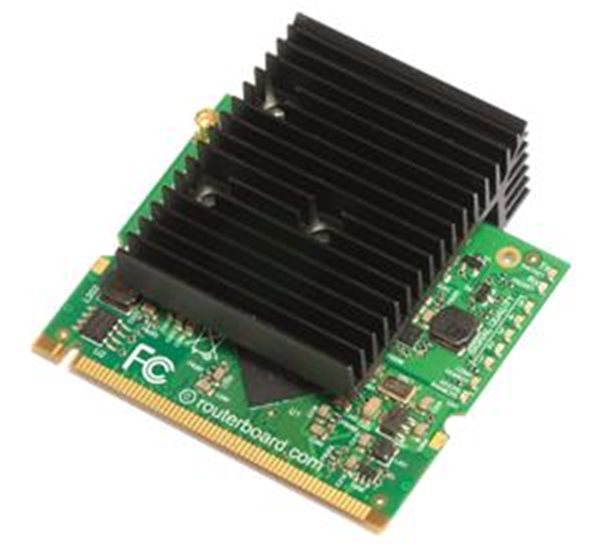

The card comes with a preinstalled industrial grade heatsink, one MMCX connector and nine LED indicator lights.

SPECIFICATIONS
Product code
• R2SHPn

802.11a
• No

Max power consumption
• 10W

802.11b
• Yes

802.11g
• Yes

802.11n
• Yes

Connector
• MMCX

Format
• miniPCI

Chipset
• AR9223

Output power
• 32dBm

Bands
• 2192-2734Mhz

2GHz
• Yes

5GHz
• No

Operating Temperature
• -30C to +65C (operating), -5C to +65C (starting)
