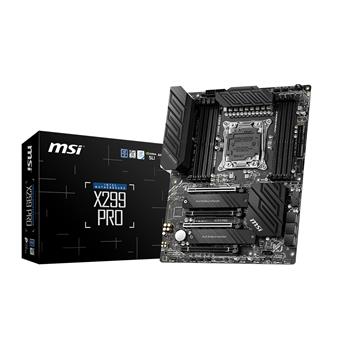

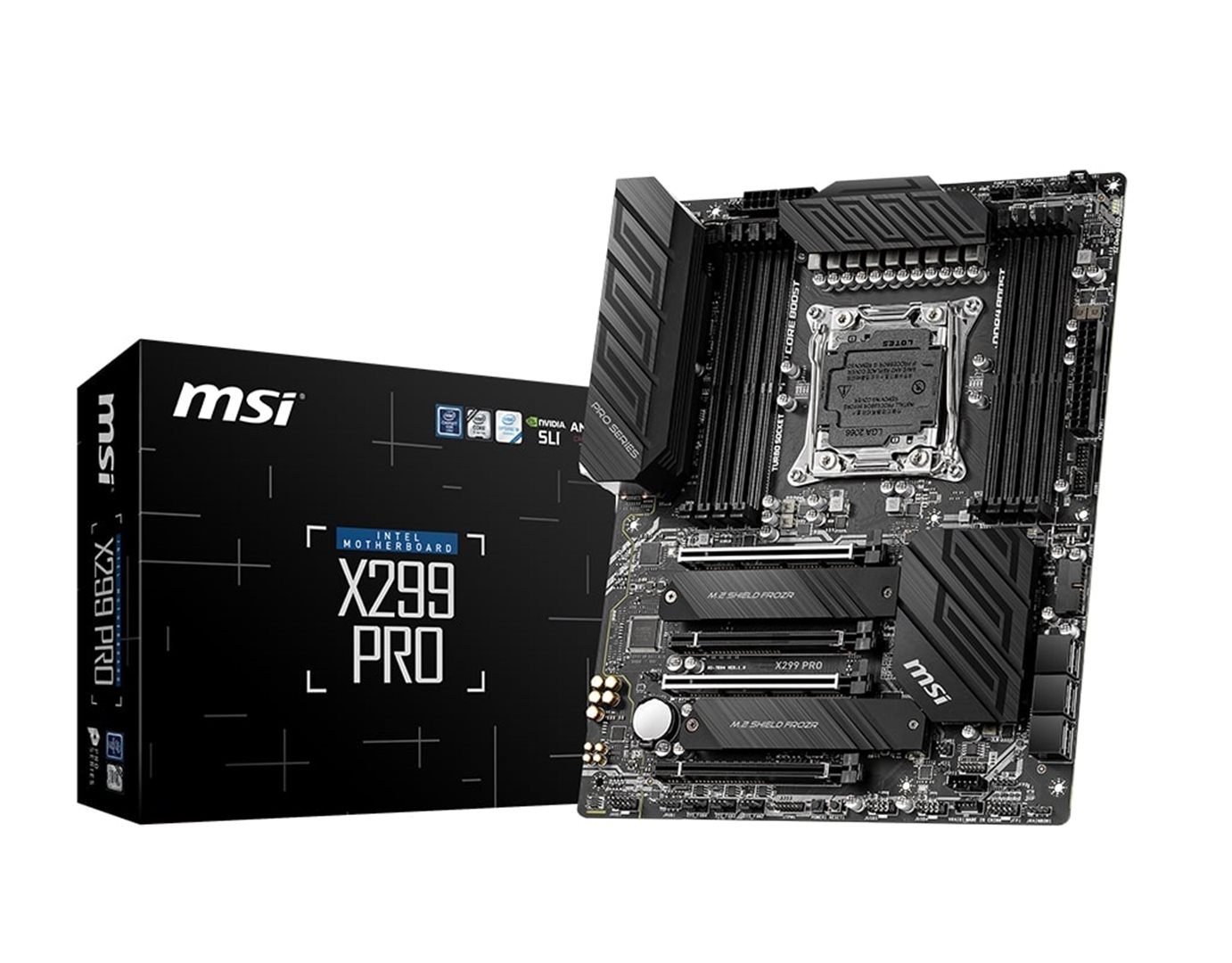

MSI X299 PRO

Chipset: Intel® X299

Rozměrový formát: ATX Form Factor (305 x 244 mm)
Podpora pro procesory: Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
Patice procesoru: LGA2066

Pozice na paměti: 8x DDR4 memory slots, Quad (4) channel memory architecture
Podpora pro paměti: 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
Max.velikost operační paměti: 256 GB
Podpora pro paměti typu:

• Intel® Extreme Memory Profile (XMP)
• non-ECC UDIMM memory
• un-buffered memory

Grafická karta:

• Podpora 3-Way NVIDIA® SLI™ Technology
• Podpora 3-Way AMD® CrossFire™ Technology

Zvuková karta:

• Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio, Podpora S/PDIF output

Síťová karta:

• 1x Intel I219-V Gigabit LAN controller
• 1x Realtek RTL8125-CG 2.5G LAN controller

Rozšiřující sloty:

• 4x PCIe 3.0 x16 slots

RAID řadič:

• RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA zařízení
• RAID 0 a RAID 1 pro M.2 PCIe zařízení

SATA:

• 6x SATA 6Gb/s ports

M.2:

• 2x M.2 slot (Key M)

USB:

• ASMedia® ASM3242 Chipset
• 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel
• ASMedia® ASM3142 Chipset
• 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector
• Intel® X299 Chipset
• 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
• 8x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Interní porty:

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 1x USB 3.2 Gen2 Type-C port
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Virtual RAID on CPU connector
• 1x Thunderbolt Add-on Card Connector

Externí porty:

• Keyboard / Mouse
• 1x Gigabit LAN
• 1x 2.5G LAN
• Audio Connectors
• Clear CMOS Button
• 4x USB 2.0
• 4x USB 3.2 Gen1 Type-A
• 1x USB 3.2 Gen2x2 20G Type-C
• Optical S/PDIF out

Stránka výrobce: https://www.msi.com/Motherboard/X299-PRO/Overview
