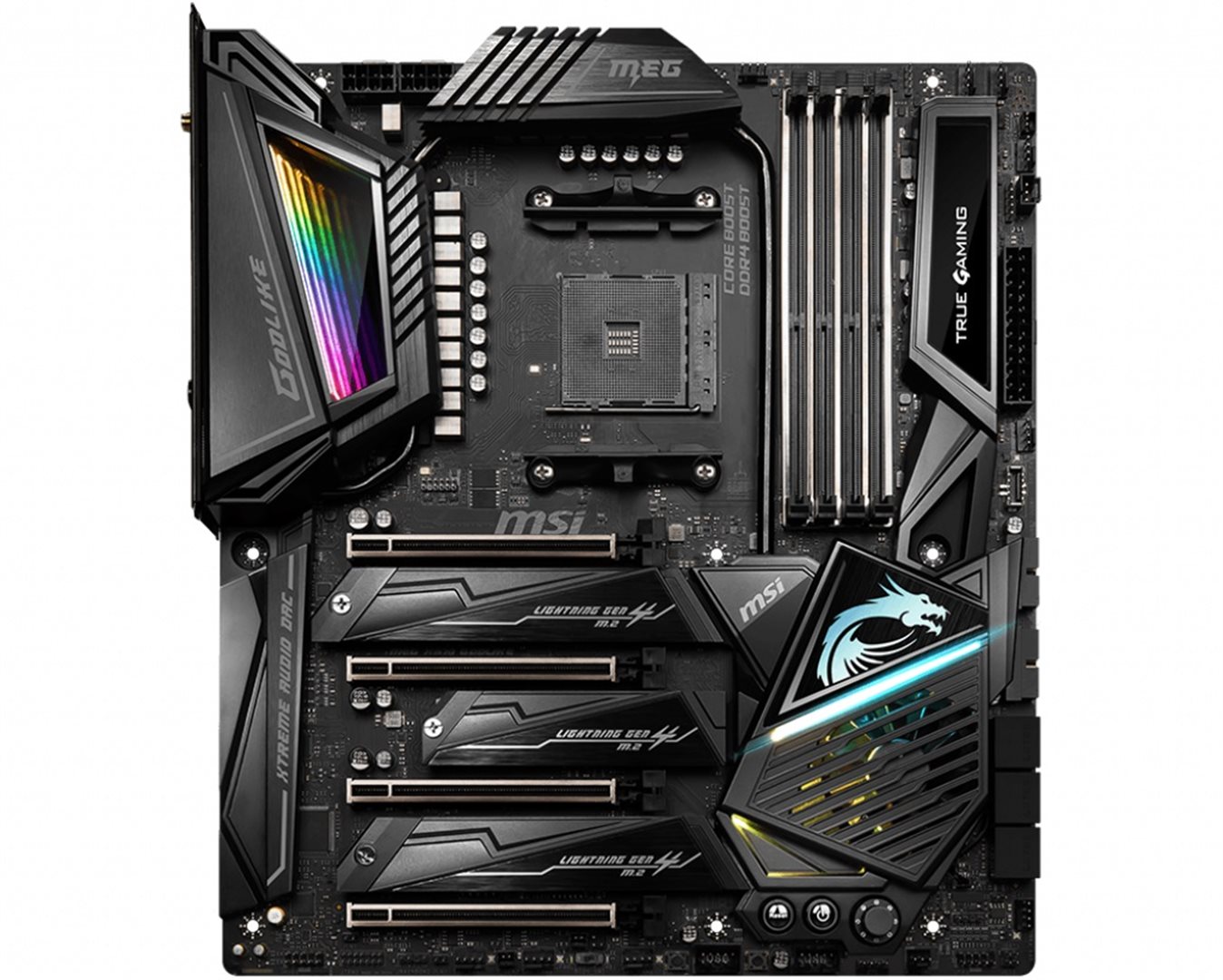

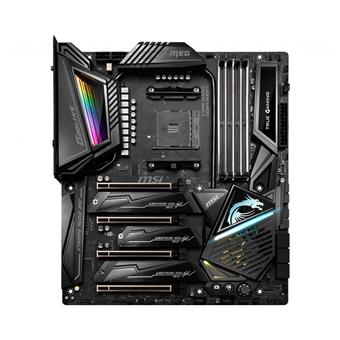

MSI MEG X570 GODLIKE

Chipset: AMD® X570 Chipset

Rozměrový formát: E-ATX Form Factor (30.5 cm x 27.2 cm)
Podpora pro procesory: 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 memory slots, Dual channel memory architecture
Podpora pro paměti:

• 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 Mhz by A-XMP OC MODE
• 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: non-ECC, ECC

Zvuková karta: 2x Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio (Podpora Optical S/PDIF output)
Síťová karta:

• 1x Killer™ E2600 Gigabit LAN Controller
• 1x Killer™ E3000 2.5 Gbps LAN Controller
• Killer™ Wi-Fi 6 AX1650 Chipset - Wi-Fi 802.11 a/b/g/n/ac/ax, dual band (2.4GHz, 5GHz) up to 2.4 Gbps speed
• Bluetooth® 5

Rozšiřující sloty:

• 3x PCIe 4.0/3.0 x16 slot (PCI_E1~3)
• 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode)

RAID řadič: RAID 0, RAID 1 and RAID 10

SATA:

• AMD® X570 Chipset
• 4x SATA 6Gb/s ports (SATA1-SATA4)
• ASMedia ASM1061
• 2x SATA 6Gb/s ports (SATA5, SATA6)

M.2: 3x M.2 slots (Key M)
USB:

• AMD® X570 Chipset
• 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports na zadním panelu, 1 Type-C internal connectors)
• 4x USB 3.2 Gen1 (SuperSpeed USB) ports přes interní USB connectors
• 4x USB 2.0 (High-speed USB) ports přes interní USB connectors
• AMD® Processor
• 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port na zadním panelu
• 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports na zadním panelu

Interní porty:

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen2 Type-C port
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump connector
• 7x 4-pin system fan connectors
• 1x 3-pin Water Flow connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 2x 2-pin Thermal Sensors connectors
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector

Externí porty:

• 1x Clear CMOS Button
• 1x Wi-Fi /Bluetooth Antenna Connectors
• 1x PS/2 GAMING Device Port
• 2x Killer 2.5G,Killer Gigabit LAN
• HD Audio Connectors
• Flash BIOS Button
• 2x USB 3.2 Gen1 Ports
• 1x USB 3.2 Gen2 Ports Type C
• 3x USB 3.2 Gen2 Ports Type A
• 6.3mm headphone
• Optical S/PDIF-Out

BIOS: AMI BIOS 7C34v141

Stránka výrobce: https://cz.msi.com/Motherboard/MEG-X570-GODLIKE/Overview
