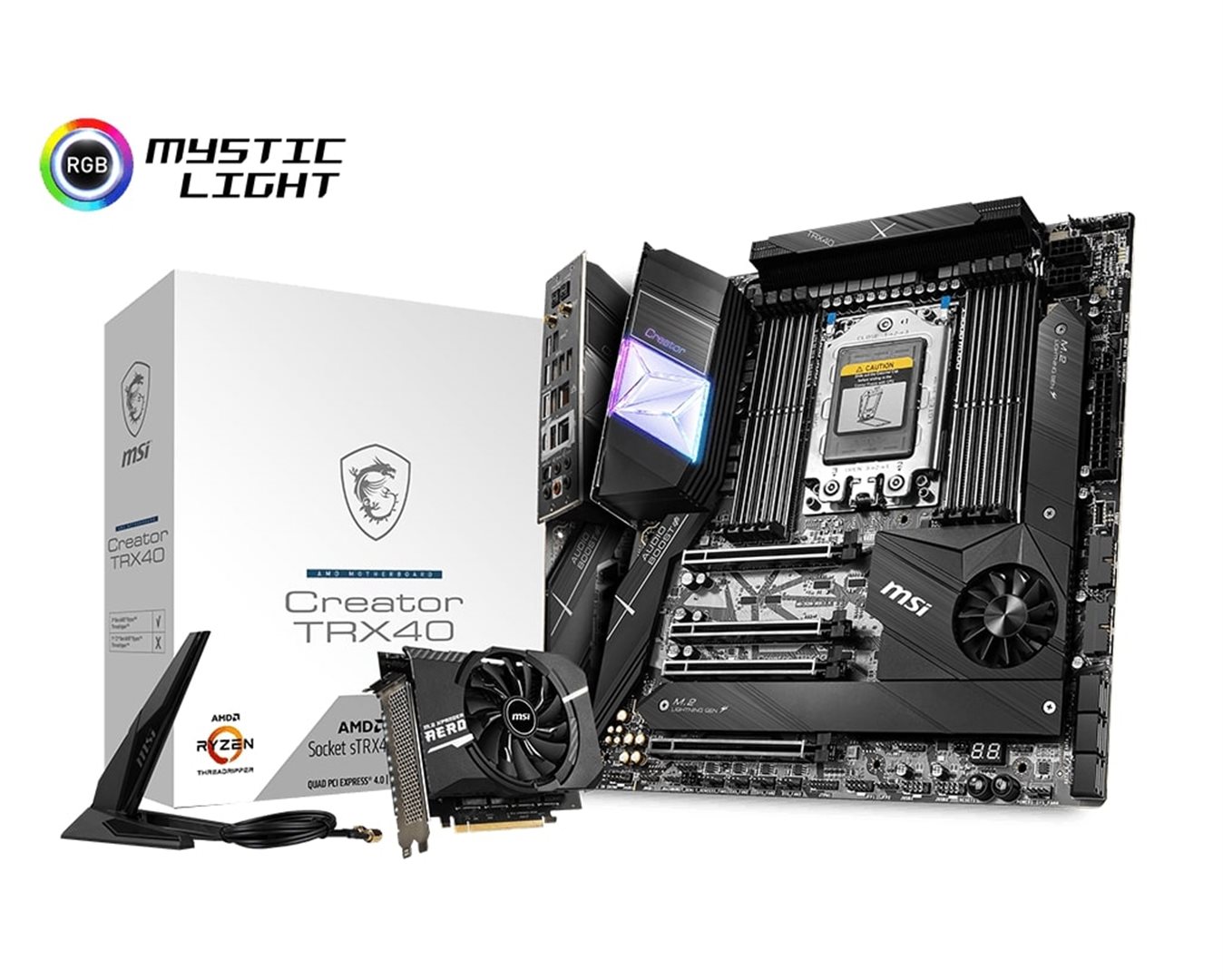

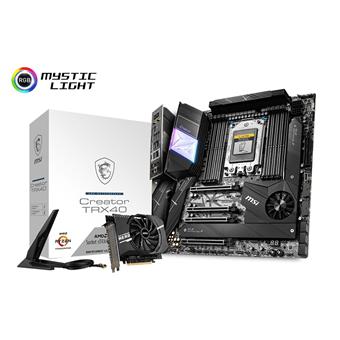

MSI Creator TRX40

Chipset: AMD® TRX40

Rozměrový formát: E-ATX Form Factor (304 x 277 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors
Patice procesoru: sTRX4

Pozice na paměti: 8x DDR4 memory slots, Quad (4) channel memory architecture
Podpora pro paměti:

• 2133/2400/2666/3200 by JEDEC
• 2666/2800/2933/3000/3200/3466/3600/3733/3866/4000/4266/4400/4600/4666 by A-XMP OC MODE

Max.velikost operační paměti: 256 GB
Podpora pro paměti typu:

• non-ECC UDIMM memory
• ECC UDIMM memory
• un-buffered memory

Grafická karta:

• Podpora 3-Way NVIDIA® SLI™ Technology
• Podpora 3-Way AMD® CrossFire™ Technology

Zvuková karta:

• Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio
• Realtek® ALC4050H Codec, přední a zadní panel Mic-in, Podpora S/PDIF output

Síťová karta:

• 1x Intel® I211AT Gigabit LAN controller
• 1x Aquantia® AQC107 10-Gigabit LAN controller

WiFi a Bluetooth: Intel® Wi-Fi 6 AX200 (802.11 a/b/g/n/ac/ax) + Bluetooth 5.0

Rozšiřující sloty:

• 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)

RAID řadič: RAID 0, RAID 1 and RAID 10

SATA:

• 6x SATA 6Gb/s ports

M.2:

• 1x M.2 slot (M2_3, Key M)
• 2x M.2 slots (M2_1 & M2_2, Key M)

USB:

• AMD® TRX40 Chipset
• 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
• 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
• 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
• 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
• 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
• ASMedia® ASM3242 Chipset
• 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Interní porty:

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen2 Type-C port
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin pump fan connector (supports up to 2A)
• 4x 4-pin system fan connectors
• 3x 4-pin extend fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 3x 2-pin Thermal Sensors connectors
• 1x 4-pin 5050 RGB LED connector
• 2x 3-pin ARGB LED connectors
• 1x 3-pin CORSAIR LED connector
• 1x LED demo connector
• 1x JBLK_U pin header
• 1x JBLK_D pin header
• 1x OC retry pin header
• 1x OC force enter pin header
• 1x Slow mode booting jumper

Externí porty:

• Clear CMOS Button
• Wireless / Bluetooth
• 1x Gigabit LAN
• 1x 10G LAN
• Audio Connectors
• Flash BIOS Button
• 5x USB 3.2 Gen2 Type-A
• 4x USB 3.2 Gen1 Type-A
• 1x USB 3.2 Gen2x2 20G Type-C
• Optical S/PDIF out

Stránka výrobce: https://www.msi.com/Motherboard/Creator-TRX40/Overview
