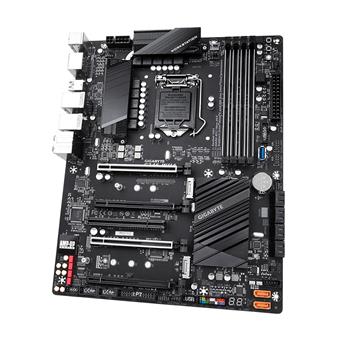

GIGABYTE C246-WU4 (rev. 1.0)

Chipset: Intel C246 Express
Revize: 1.0

Rozměrový formát: ATX
Podpora pro procesory: Intel® Xeon® E series/ 9. a 8. generace Intel Core/ Intel Pentium/ Intel Celeron procesory
Patice procesoru: LGA1151

Sloty na paměti: 4 x DDR4 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR4 2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu:

• ECC Un-buffered DIMM 1Rx8/2Rx8
• non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16

Grafická karta: Dle závislosti na CPU, Maximální sdílená paměť 1 GB

• 2x DisplayPorts, maximální rozlišení 4096x2304@60 Hz

Zvuková karta: Realtek® ALC1220-VB codec, High Definition Audio, 2/4/5.1/7.1-channel, (podpora S/PDIF Out)
Síťová karta: 2x Intel® GbE LAN chips (10/100/1000 Mbit)

Rozšiřující sloty:

• 1x PCI Express x16 slot, running at x16 (PCIEX16)
• 1x PCI Express x16 slot, running at x8 (PCIEX8)
• 2x PCI Express x16 slot, running at x4 (PCIEX4_1/PCIEX4_2)
• 1x PCI slot

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA:

• 10x SATA 6Gb/s connectors (z toho 2 x SATA 6Gb/s connectors pro ASMedia ASM1061 chip)
• 2x SATA power headers
• 2x SATA detection headers

M.2:

• 1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2A)
• 1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

USB:

• 1x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
• 1x USB 3.1 Gen 2 Type-A port (red) on the back panel
• 7x USB 3.1 Gen 1 ports (4 ports on the back panel, 1 port onboard, 2 ports available through the internal USB header)
• 4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Interní porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x power information detection header
• 2x M.2 Socket 3 connectors
• 10x SATA 6Gb/s connectors
• 2x SATA power headers
• 2x SATA detection headers
• 1x CPU fan header
• 1x water cooling CPU fan header
• 2x system fan headers
• 2x system fan/water cooling pump headers
• 1x front panel header
• 1x front panel audio header
• 1x USB 3.1 Gen 1 port (USB30_OB)
• 1x USB 3.1 Gen 1 header
• 1x USB 2.0/1.1 header
• 1x S/PDIF Out header
• 1x Thunderbolt™ add-in card connector
• 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1x parallel port header
• 2x serial port headers
• 2x temperature sensor headers
• 1x power button
• 1x reset button
• 1x Clear CMOS button
• 1x Clear CMOS jumper

Externí porty:

• 1x PS/2 keyboard/mouse port
• 2x DisplayPorts
• 1x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1x USB 3.1 Gen 2 Type-A port (red)
• 4x USB 3.1 Gen 1 ports
• 2x USB 2.0/1.1 ports
• 2x RJ-45 ports
• 5x audio jacks

BIOS: AMI UEFI BIOS, 1 x 128 Mbit flash

Stránka výrobce: https://www.gigabyte.com/Server-Motherboard/C246-WU4-rev-10#kf
