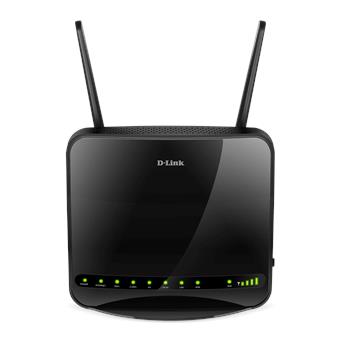

D-Link DWR-953 Wireless AC750 4G

PŘEHLED

The DWR-953 Wireless AC1200 4G LTE Multi-WAN Router allows you to seamlessly switch to a 4G LTE mobile internet backup network when your broadband internet goes down, with download speeds of up to 150 Mbps2, so you can keep using the internet without interruptions.

D-Link’s DWR-953 Wireless AC1200 4G LTE Multi-WAN Router allows you to share a high speed 4G LTE mobile broadband network with multiple devices through Wi-Fi or wired connection. Once connected, you can transfer data, stream media, and send SMS messages. Simply insert your SIM card and share your 4G LTE Internet connection through a secure wireless network or any of the four Gigabit Ethernet LAN ports.

• Integrated LTE 4G 150 Mbps Broadband Modem and Wireless AC750 Router.
• Embedded LTE/HSPA Module (Dual Mode)
• Supports LTE Band 1/2/3/5/7/8/20/38/40 (FDD: 2100/1900/1800/850/2600/900/800 MHz, TDD: 2600/TDD 2300 MHz)
• Supports 3G UMTS Band 1/2/3/5/8 (2100/1900/1800/850/900 MHz)
• Supports GSM 850/900/1800/1900 MHz
• 2x external, detachable LTE antenna
• 4 x GE LAN
• 1 x GE WAN
• IEEE 802.11a/b/g/n/ac compliant
• WEP (64/128 bits), WPA, WPA2
• WPS Support

TECHNICAL SPECIFICATION

Frequency Support

• LTE Bands: Release 10, Cat 4: Bands 1/2/3/5/7/8/20/38/40 (FDD: 2100/1900/1800/850/2600/900/800 MHz, TDD: 2600/TDD 2300 MHz) *Pentaband UMTS/HSPA/HSPA+/DC-HSPA+ 1/2/3/5/8 (2100/1900/1800/850/900 MHz)
• Quadband GSM/GPRS/EDGE 850/900/1800/1900 MHz

Device Interfaces

• One 10/100/1000 Gigabit Ethernet WAN port
• Four 10/100/1000 Gigabit Ethernet LAN ports
• Two detachable 4G LTE antennas

Data Rates

• LTE Downlink: Up to 150 Mbps
• LTE Uplink: Up to 50 Mbps
• DC-HSPA Downlink: Up to 42 Mbps
• DC-HSPA Uplink: Up to 5.72 Mbps

Standards

• 802.11ac/n/g/b/a
• 802.3i
• 802.3u

Wi-Fi Data Rates

• Up to 866 Mbps with 802.11ac clients
• Up to 300 Mbps with 802.11n clients
• 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode1
• 1/2/5.5/11 Mbps in 802.11b mode1

Wireless Encryption

• 64/128-bit WEP (Wired Equivalent Privacy)
• WPA & WPA2 (Wi-Fi Protected Access)

Firewall

• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)

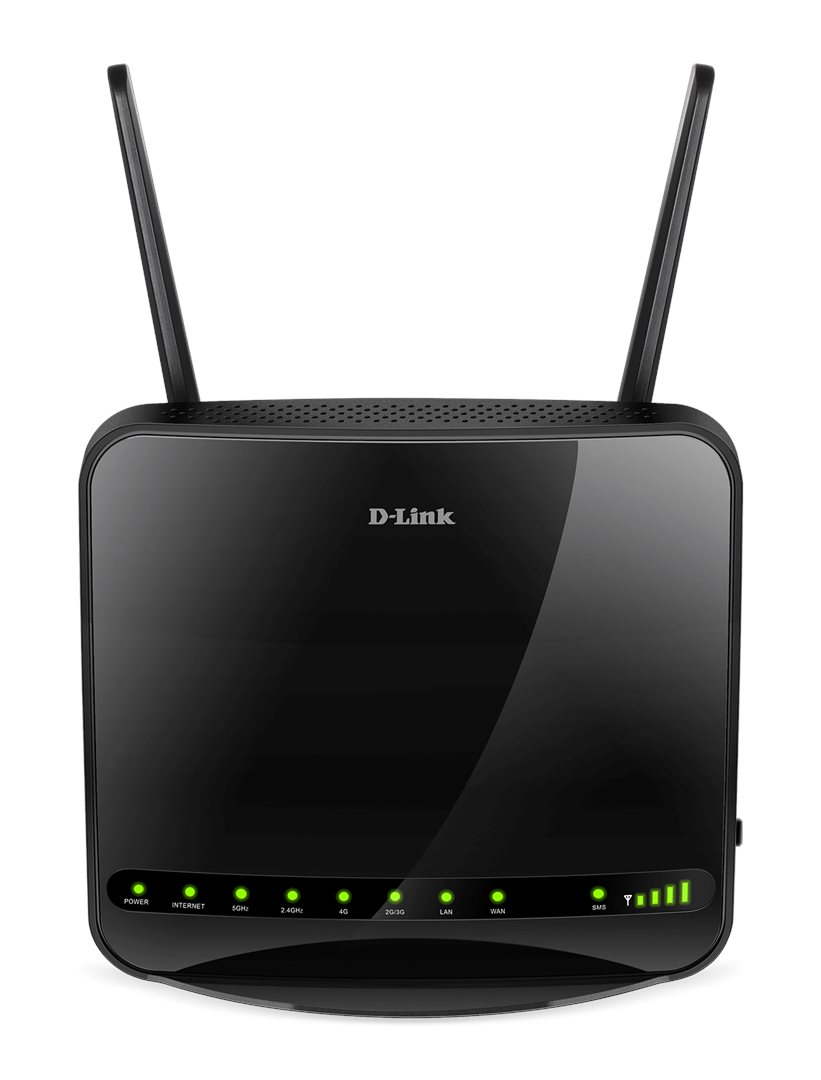

LED Status Indicators

• Power
• Internet
• 5 GHz
• 2.4 GHz
• 4G 2G/3G
• LAN
• WAN
• SMS
• Signal Strength

Dimensions

• 170 x 180 x 80 mm (6.69 x 7.09 x 3.15 in)

Weight

• 400 g (14.1 oz)

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 0% to 95% non-condensing

Certifications

• CE
