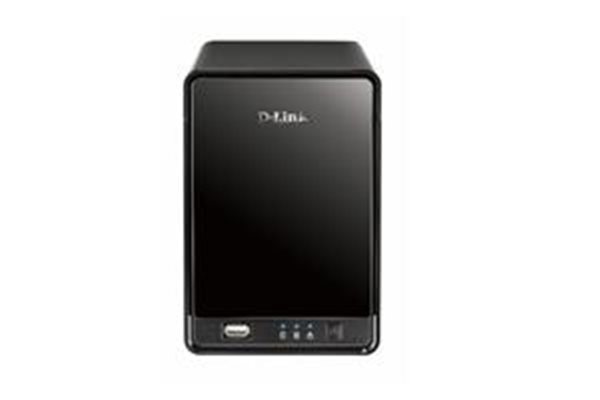

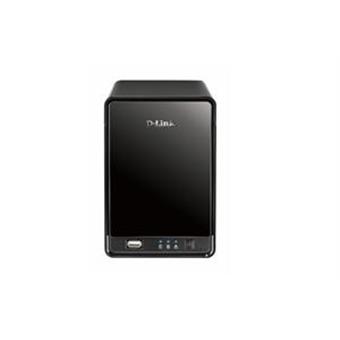

D-Link DNR-322L 2-Bay mydlink NVR pro 16 kamer

Síťový video rekorder D-Link DNR-322L, 16 kanálů, RAID, 2xSATA slot, ONVIF

Features

• Reliable network camera surveillance recorder for home and business
• View real-time and recorded video of all 16 cameras from anywhere in your home or office or remotely via the Internet

Convenient Interface

• Effortless network camera setup and management
• User-friendly interface provides simultaneous live view, recording, and playback
• Continuous or scheduled recording with automatic overwrite function

Precision Technology

• Green solution: Consumes less power and eliminates the need for a dedicated PC for continuous recording
• 2-bay SATA 3.5” HDD interface supports up to 12 TB of hard disk storage space of recorded video1
• Protects important surveillance files with automatic redundancy using RAID 1 technology

Flexible and Scalable

• Stand-alone device: Eliminates the need for a dedicated PC recording platform
• Supports D-Link network cameras

Technical Specifications
Number of Supported Cameras

• 16

Supported Camera Types

• All D-Link network cameras. Includes support for auto-discovery via UPnP
• ONVIF Cameras

User Interface

• mydlink web portal
• HTTP web browser
• NVR Search Utility
• Smart Phone

Recording Performance

• Primary video profile:

H.264 1080p (frame rate): 240 fps
H.264 720p (frame rate): 480 fps

• Secondary video profile:

H.264 VGA (frame rate): 240 fps

• Total recording bitrate 80Mbit/sec

Compression Format

• H.264, MPEG-4, M-JPEG (for supported cameras)

Standards

• IEEE 802.3/u/z • Auto MDI/MDI-X

Network Service Protocols

• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• HTTP Server
• PPPoE
• UPnP
• IP filtering

Flash ROM

• 128 MB

RAM

• 512 MB DDR II

Device Buttons

• Power Button
• Camera Auto Scan Button
• Factory Reset Button

I/O Ports

• USB port for data backup

Hard Disk Drive Bay

• Supports 2 SATA I, II, III Hard Disk Drives1
• RAID 02, 12, or JBOD configuration

Network Interface

• Gigabit Ethernet LAN port (10/100/1000 Mbps)

Power Input

• DC 12 V/3 A

Maximum Power Consumption

• 25.20 W (0.23 W Standby)

Dimensions

• 193.2 x 144.4 x 90 mm

Weight

• 592 g

Operating Temperature

• 0 to 40°C

Storage Temperature

• -20 to 70°C

Humidity

• 5% to 90% non-condensing

Package Contents

• DNR-322L 2-Bay mydlink NVR
• Ethernet Cable
• Power Adapter
• Hard Drive Mounting Kit
• Quick Installation Guide

Installation CD-ROM with:

• Software
• Product Documentation

Certifications

• CE
• FCC
• RoHS
