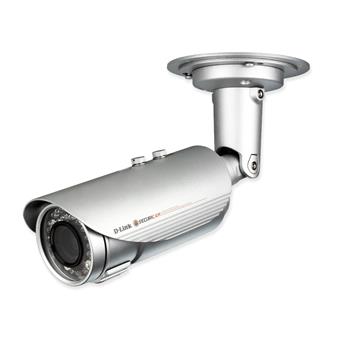

D-Link DCS-7517 Full HD 5mp CMOS Cam

OVERVIEW

The D-Link DCS-7517 5 Megapixel Day & Night Outdoor Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high resolution 1/3” 5 megapixel sensor with digital WDR image enhancement to deliver balanced video in varying lighting conditions. With 2560 x 1920 resolution, the DCS-7517 captures more detail in areas such as license plates, faces and currency. The rugged design makes this camera ideal for deployment in a wide variety of surveillance applications.

TECHNICAL SPECS

Camera

Camera Hardware Profile

• 1/3.2” 5 Megapixel CMOS sensor
• 90 feet IR illumination distance
• Automatic Infrared-Cut Filter module for night viewing
• Minimum illumination:
• 0.5 lux (color)
• 0.1 lux (B/W)
• 0 lux / (IR-LED)
• Minimum object distance: 11.8”
• 2.8 to 12 mm motorized zoom Varifocal DC Auto Iris Lens
• Aperture: F 1.8
• Angle of view:
• (H) 25° - 85°
• (V) 17° - 65°
• Shutter Speed: 1/2.5 to 1/10,000
• 4x digital zoom

Camera Housing

• IP66 compliant weatherproof housing
• Includes sunshield

Image Features

• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• 3 configurable motion detection windows
• Tamper detection
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation, contrast, sharpness, WDR, flip and mirror

Video Compression

• Simultaneous H.264/MJPEG format compression
• Multicast streaming
• JPEG for still images

Video Resolution

• 16:9 - 1920 x 1080, 1280 x 720, 960 x 540 at up to 30 fps
• 4:3 - 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960 at up to 15 fps

Audio Support

• AAC
• G.711

External Device Interface

• 10/100 BASE-TX Ethernet port with PoE
• 1 DI / 1 DO
• Reset button
• Video Out (BNC)
• microSD card Slot (SD/SDHC)
• Audio input / output

Network

Network Protocols

• IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS
• CoS
• Multicast
• ONVIF compliant
• SNMP

Security

• Administrator and user group protection
• Remote client access control
• HTTP and RTSP authentication
• HTTPS encryption for web access

System Management

System Requirements for Web Interface*

• Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari*

Event Management

• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple HTTP, SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup

Remote Management

• Take snapshots/video clips and save to local hard drive
• Configuration interface accessible via web browser

OS Support (for setup utility)

• Operating System: Windows 8/7/Vista

D-ViewCam™ System Requirements

• Operating System: Microsoft Windows 8/7/Vista
• Web Browser: Internet Explorer 8 or higher
• Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

• Remote management/control of up to 32 cameras
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options

General

Weight

• 1.25 kg ±5% for camera only, without sunshield and mounting bracket

Power

• External power adapter: 12 V DC 1.5 A. 50/60 Hz, IEEE
• PoE: 802.3af Class 0

Power Consumption

• Max: 12.48 W

Temperature

• Operating: (-40° to 50° C)
• Storage: (-20° to 70° C)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• CE
• CE LVD
• ICES-003
• FCC
• C-Tick

Warranty

• 5-Year Limited Warranty
