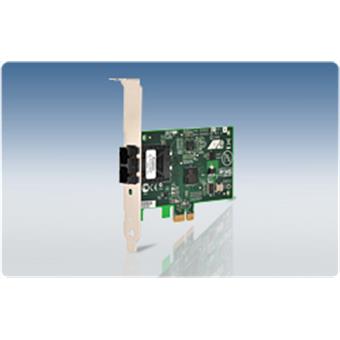

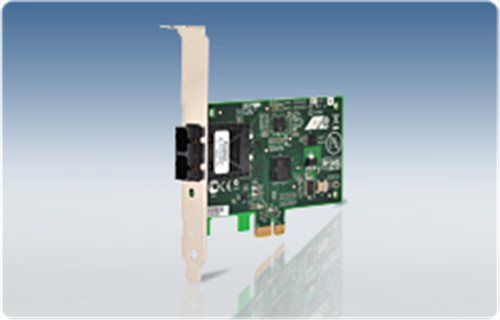

Allied Telesis 100FX PCIe SM NIC AT-2712LX20/ SC

AT-2712FX 100FX (SC), PCIe x 1, secure single-mode NIC
Overview
The AT-2712LX20 (available with SC connector) Network Interface Card is an ideal fit for fiber to the desktop networks that depend on secure and reliable systems.With a small form factor PCIe x1 bus the AT-2712LX20 is an ideal fit for government, education or other networks dependent on highly secure capabilities.

Technical Specifications
Status Indicators
System LEDs

• 1 LED indicating link/activity

Interface Standards

• IEEE 802.3u Fast Ethernet
• IEEE 802.3x Full-duplex
• PCIe x1
• DASH v 1.1.0

Physical Characteristics

• Dimensions 10.7cm x 5.6cm
• Weight .04kg

Standard or low-profile brackets provided (low profile fitted)
Power

• Power consumption 760ma @ 3.3v
• Environmental Specifications
• Maximum operating temperature 0 ° to 40 °
• Maximim storage temperature -25° to 70°
• Relative humidity operating and storage 5% to 95% non-condensing

Operating and storage altitude Up to 3,048 meters (10,000ft)
