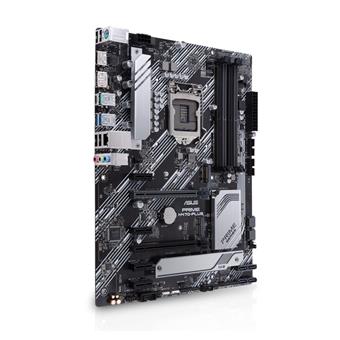

ASUS PRIME H470-PLUS

Chipset: Intel® H470

Rozměrový formát: ATX Form Factor (305 mm x 234 mm)
Podpora pro procesory: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 (Dual Channel)

• Intel® Extreme Memory Profile (XMP)

Grafická karta:

• Integrated Graphics Processor (na základě procesoru)

Mulit GPU:

• AMD 2-Way CrossFireX Technology

Zvuková karta:

• Realtek® ALC887 8-Channel High Definition Audio CODEC

Síťová karta:

• Realtek® RTL8111H

Rozšiřující sloty:

• 1x PCIe 3.0 x16 (x16 mode)
• 1x PCIe 3.0 x16 (x4 mode)
• 4x PCIe 3.0 x1

RAID řadič: 0, 1, 5, 10

SATA:

• 6x SATA 6Gb/s port(s)

M.2:

• 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

USB:

• zadní USB porty ( celkem 8 )
• 2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)
• 2x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4x USB 2.0 port(s)(4 x Type-A)
• přední USB porty ( celkem 7 )
• 4x USB 3.2 Gen 1 port(s)
• 3x USB 2.0 port(s)

Interní porty:

• 1x CPU Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 1x Aura RGB Strip Headers
• 1x Addressable Gen 2 header(s)
• 2x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
• 2x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
• 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
• 1x M.2 with E key for Wi-Fi module
• 1x SPI TPM header
• 6x SATA 6Gb/s connector(s)
• 1x S/PDIF out header(s)
• 1x Thunderbolt header(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin EATX 12V Power connectors
• 1x Front panel audio connector(s) (AAFP)
• 1x Clear CMOS jumper(s)
• 1x System panel connector
• 1x COM port header

Externí porty:

• 1x PS/2 keyboard/mouse combo port(s)
• 1x DisplayPort
• 1x HDMI
• 1x LAN (RJ45) port(s)
• 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 2x USB 3.2 Gen 1 Type-A
• 4x USB 2.0 *2
• 3x Audio jack(s)

Obsah balení:

• User's manual
• I/O Shield
• 2x SATA 6Gb/s cable(s)
• 1x Supporting DVD
• 1x M.2 SSD screw package(s)
• 1x M.2 Key E screw package(s)
• 1x M.2 Rubber Package(s)

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards/PRIME-H470-PLUS/
